TLD Reader for passive dosimetry

RadPro offers various products related to TLD like TLD Reader, TLD Dosimeter, TLD material in different shapes,... Here a short overview.


RE-2000





Our automatic TLD reader called RE-2000 is manufactured by Mirion Technologies (RADOS) Oy. The RE-2000 TLD reader is available in 3 different versions. RE-2000S and RE-2000A which differs in the capacity (20/200 whole body dosimeter - 80/800 single elements). The 3rd TLD Reader version is the RE-2000RT which provides the possibility to read TLD rods (1mm in diameter and 6mm lenght) used  in combination with radiotherapy phantoms. All three TLD reader models are able to read whole body dosimeter and single crystals used for extremity dosimetry, medical application,...



A perfect system for personal dosimetry in combination with our whole-body, extremity and environmental dosimeters.

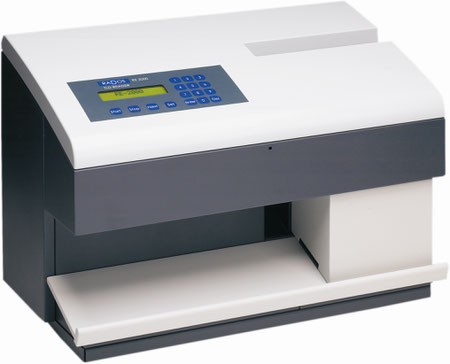

RADOS RE-2000 automatic TLD reader for TLD cards used as passive dosimeter
RE-2000 automatic TLD Reader

TLDcube

Our manual TLD reader called TLDcube is a small, lightweight and portable TLD reader for measuring, analyzing and evaluating of thermoluminescent materials. Modern design and software combine easy operation and excellent performance in this newly developed TLD reader. The ceramic heater with defined nitrogen cooling in the rotating drawer accepts all standard TLD shapes.

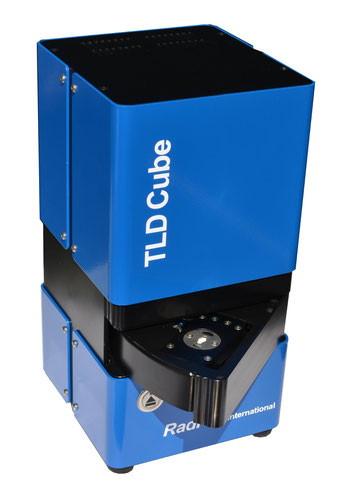

TLDcube manual TLD reader for various TLD material used in research, personal dosimetry, dating, checking irradiated food
TLDcube manual TLD Reader

Dosimeter types

Hp(3) TL eye lens dosimeter EYE-D

Eye lens dosimeter EYE-D

RADOS TLD badge

Finger ring dosimeter



TLD material

our main TL material are LiF:Mg,Ti called MTS and LiF:Mg,Cu,P called MCP.



Both types are available with different isotopic composition: natural, enriched in 7Li (>99.9%) or enriched in 6Li (about 95%). The TLD material is available in the form of solid pellets of 4.5 mm Diameter and different thickness,  as TL powder, square TLDs, micro cubes,... and is qulified for different applications like personal dosimetry, environmental monitoring, medical dosimetry,...

Furthermore we offer various accessories to complete your TL system like extremity, environmental or neutron dosimeters, TLD oven, radiotherapy phantoms, Nitrogen generators,...

TLD oven for annealing of TL dosimeters
TLD Heat - TLD oven
TLD radiation therapy phantom
Alderson phantoms
nitrogen generator for TLD reader
Nitrogen generator
